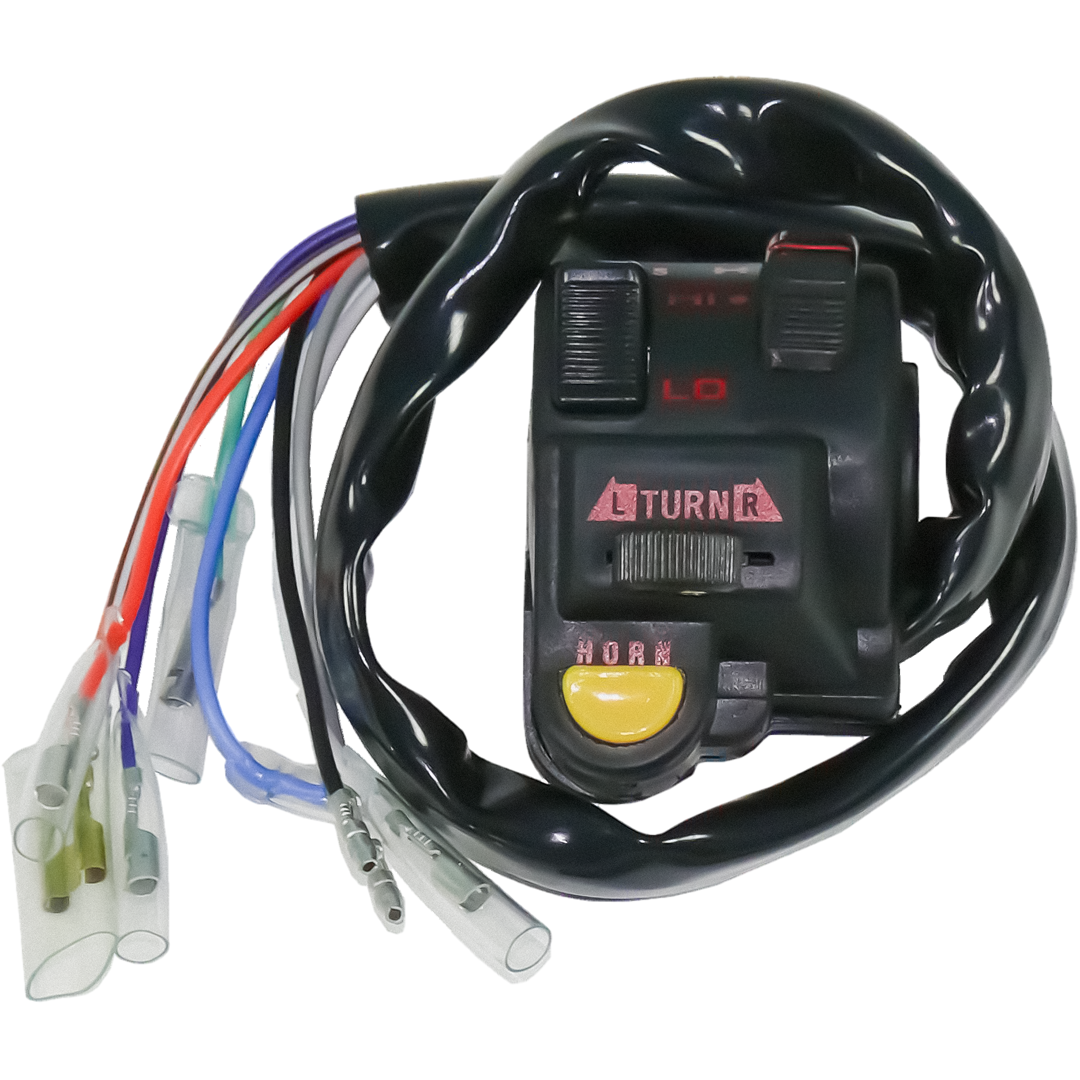

COMBINATION SWITCH ASSEMBLY XR

WIRING DIAGRAM:

BLACK ---> POWER

WHITE ---> LOW BEAM

BLUE ---> HIGH BEAM

BROWN/WHITE ---> DASH LIGHT

GREY ---> POWER TO FLASHER RELAY

LIGHT BLUE ---> FLASHER R/H

ORANGE ---> FLASHER L/H

LIGHT GREEN ---> HORN

SKU CS4
Barcode # 9334437036501
Unit Of Measure EACH
